Professional Label Printer with Wired, Wireless and Bluetooth® Wireless Connectivity
- Print up to 62mm DK rolls width
- USB, USB host, Wired LAN, Wireless and Bluetooth® wireless connection
- Auto cut function
- Standalone print without PC required
- Fast print speed of up to 176mm per second
- Standalone Time-stamping function
Information
Overview

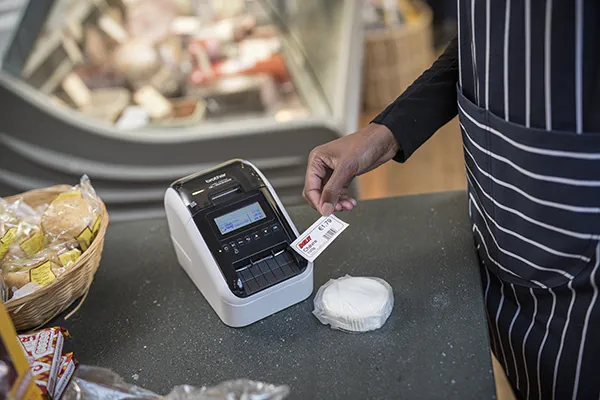

Black and Red text printing
Draw attention to important information with Brother’s DK-22251 62mm x 15.24mm Red/Black Continuous length paper label to highlight use-by dates, allergens, and other critical information.

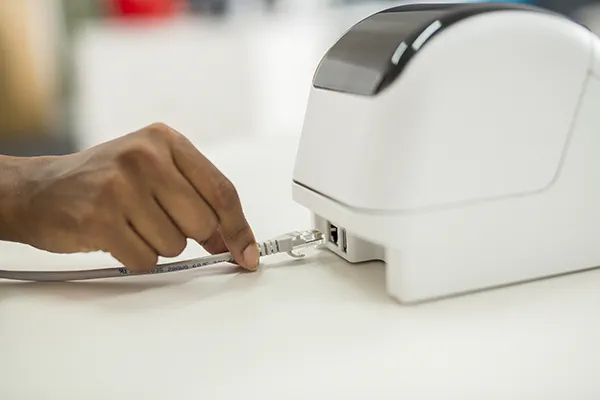

Flexible connectivity options
Comes with the most connectivity options ranging from USB, Wired LAN, Wireless and Bluetooth® wireless connection to choose from, QL-820NWB label printer can print labels via AirPrint® on iOS® devices, Android™ devices, PC or macOS® systems via a Wireless or Bluetooth® wireless connection.

Standalone label printing
QL-820NWB label printer has a large memory to store label templates designed in Brother’s P-touch Editor software.
Label templates can be uploaded to the label printer’s memory and accessed using the integrated control panel and backlit graphic LCD.
Ideal for printing current or future dates and times on labels for the Food and Retail industries.

Rechargeable Li-ion battery
With a Rechargeable Li-ion battery* option that can be mounted on the base of QL-820NWB label printer, labels can be printed without any power source.
This solution is ideal for use on carts or for printing food labels and exhibition badges onsite.
* Separate purchase required

iPrint&Label mobile app
Brother’s P-touch iPrint&Label is a complimentary mobile app that enables easy label creation and printing from Apple® or Android™ devices via a Wireless or Bluetooth® wireless connection with QL-820NWB label printer.
Create labels using Brother’s P-touch Editor software and share them with a mobile device to print, save, or edit on iPrint&Label mobile app for a fully integrated solution.

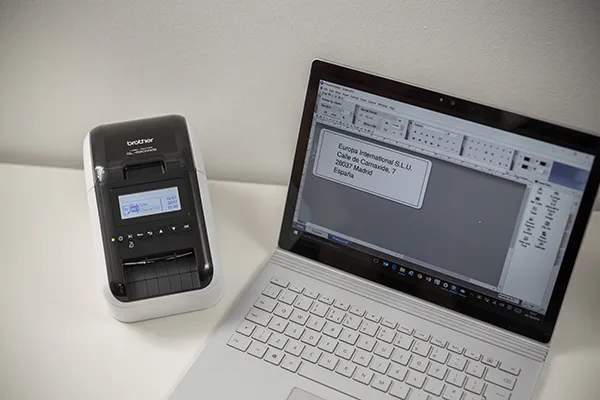

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes.
Import graphic files to create a logo and print labels on demand from an imported database via a USB, Wired LAN, Wireless or Bluetooth® wireless connection with a PC or macOS® systems.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.

Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kit (b-PAC SDK) for Windows® or Mobile Software Development Kit (b-PAC SDK) for iOS® and Android™ OS and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx

Remote template update via FTP server
When QL-820NWB label printers are deployed at multiple locations, updating templates to all the label printers will be very time intensive.
QL-820NWB label printers can automatically connect to a remote server using FTP. If any new templates are found, they will be updated automatically.
This will help companies to save time and money while ensuring consistent operation at all remote sites.
For more information, please visit:
https://support.brother.com/g/b/faqend.aspx?c=eu_ot&lang=en%20&prod=lpql820nwbeuk&faqid=faqp00100482_000&pfs=1
Specifications
Basic Specs
Display Type
320x120 dot graphic LCD with backlight
Media Type
DK roll
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.16 kg
Print Speed
Max 176mm/sec
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity
USB & Wired Ethernet, Wireless LAN, Bluetooth
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Yes (full auto cut / guillotine type)
Multi Block Printing
PC
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
6MB, 255 templates
Power
Power Source
240V AC external adapter
Auto Power-Off
Yes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, (ZPL/ZPLⅡ(upon request))
