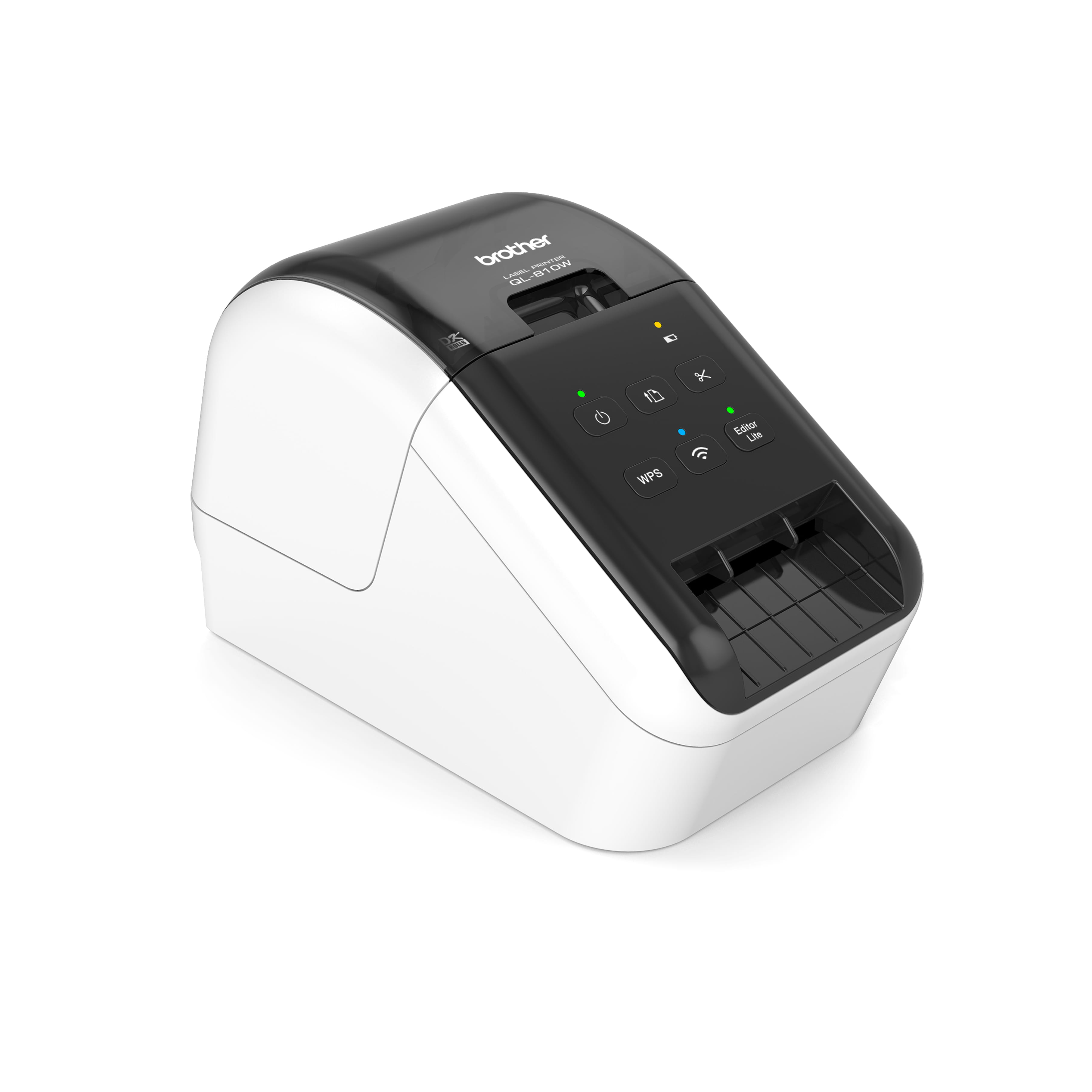

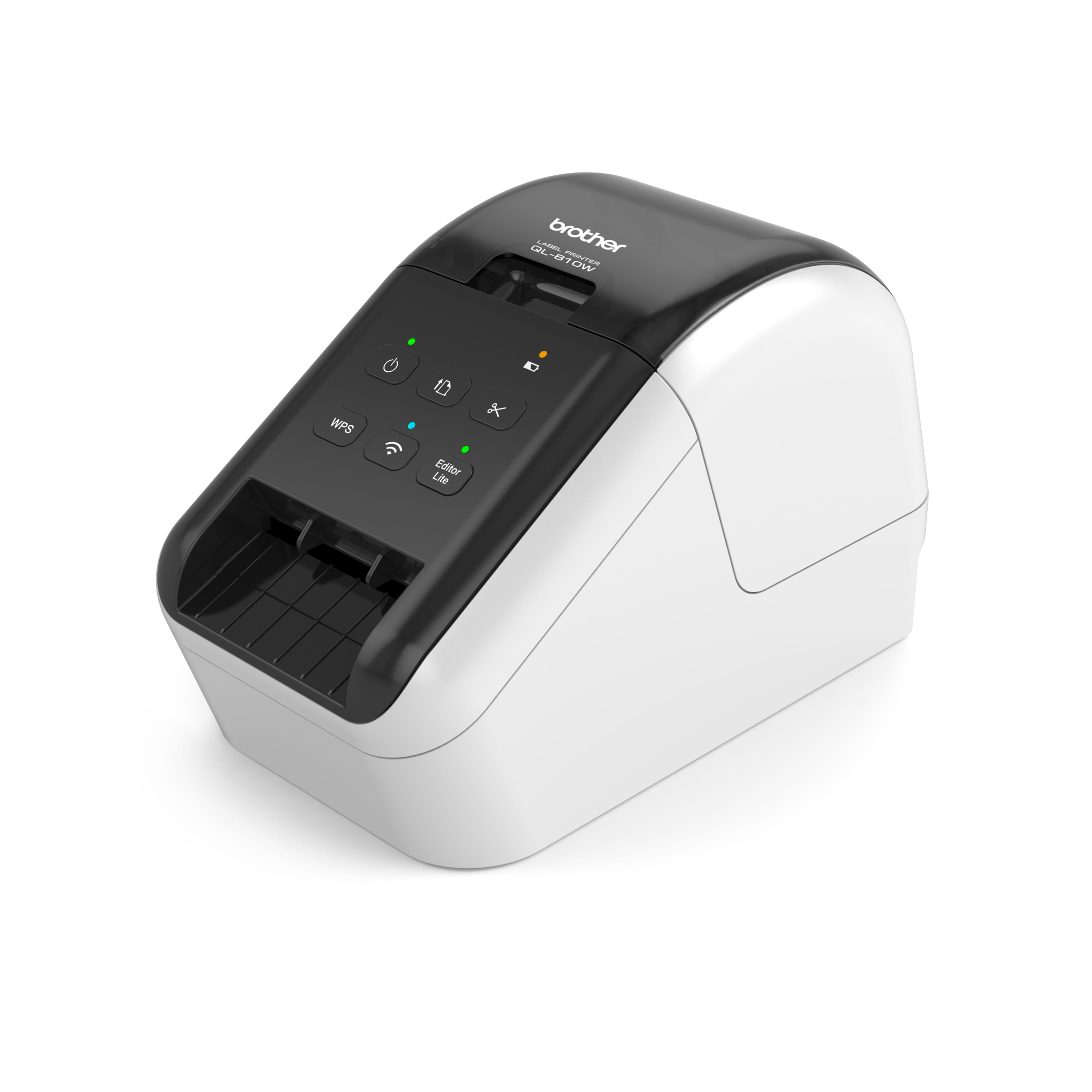

High Speed Professional Wireless Label Printer
MRP ₹24,090 (incl. of all taxes)
- Print up to 62mm DK rolls width
- USB and Wireless connection
- Auto cut function
- Prints Red/Black on White label
- Fast print speed of up to 176mm per second
- Comes with Label collection templates
Information
Overview
Black and Red text printing
Draw attention to important information with Brother’s DK-22251 62mm x 15.24mm Red/Black Continuous length paper label to highlight use-by dates, allergens, and other critical information.

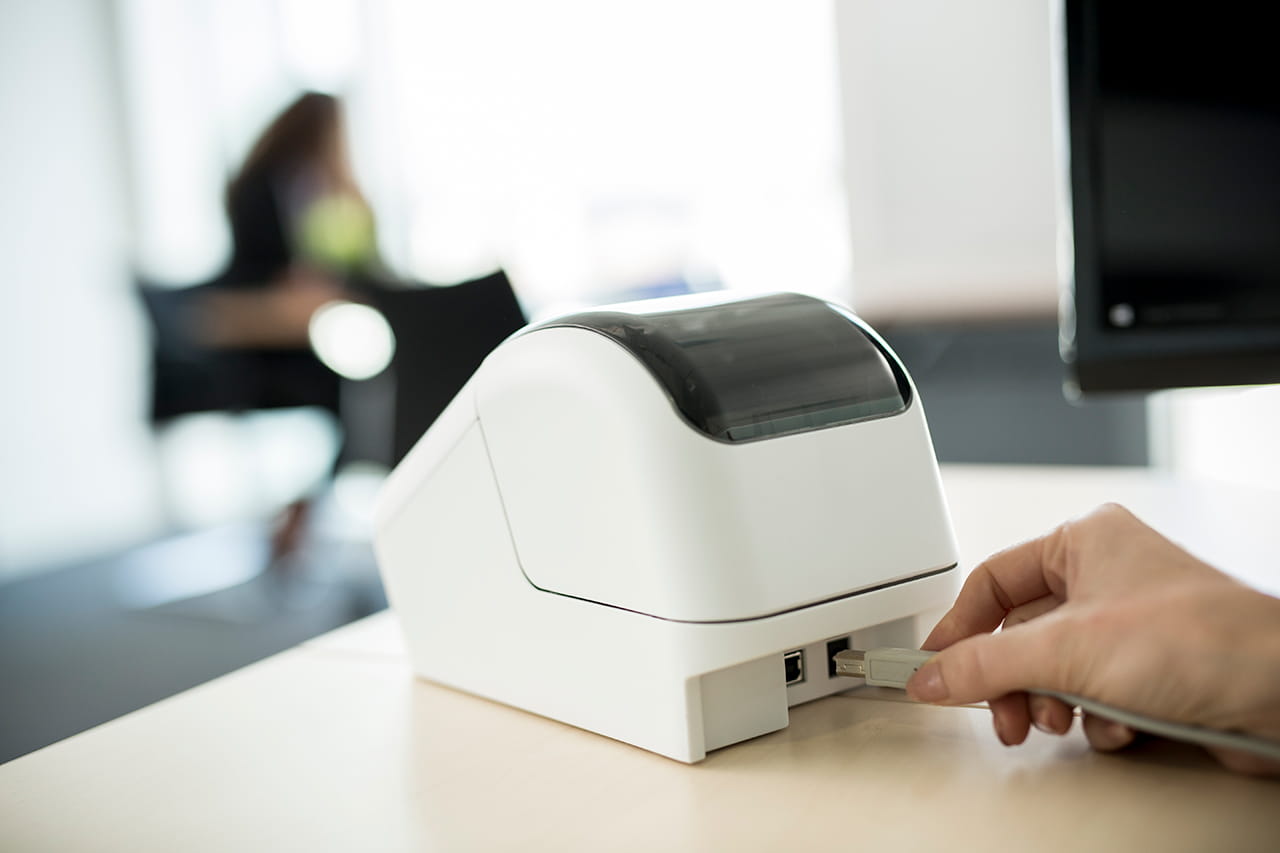

Flexible connectivity options
Comes with the most connectivity options, QL-810W label printer can print labels via a USB, AirPrint®, Wireless, MFi®, or Bluetooth® wireless connection.
iPrint&Label mobile app
Brother’s P-touch iPrint&Label is a complimentary mobile app that enables easy label creation and printing from Apple® or Android™ devices via a Wireless connection with QL-810W label printer.
Create labels using Brother’s P-touch Editor software and share them with a mobile device to print, save, or edit on iPrint&Label mobile app for a fully integrated solution.

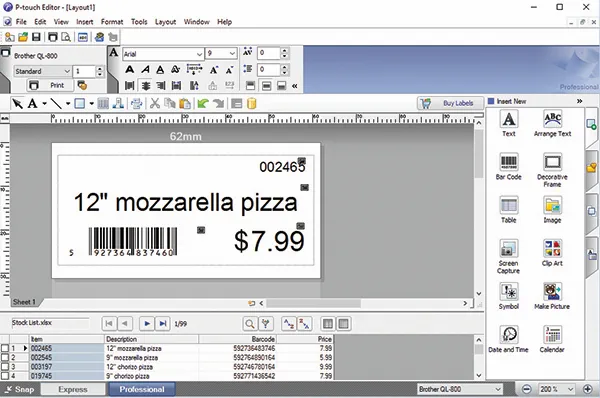

P-touch Editor software
Brother’s P-touch Editor is a complimentary label design software with a wide variety of specially designed templates, symbols, clipart, text design, and barcodes.
Import graphic files to create a logo and print labels on demand from an imported database via a USB or Wireless connection with a PC or macOS® systems.
P-touch Editor is a comprehensive and versatile label design software that can provide a truly connected solution to accommodate any label application.

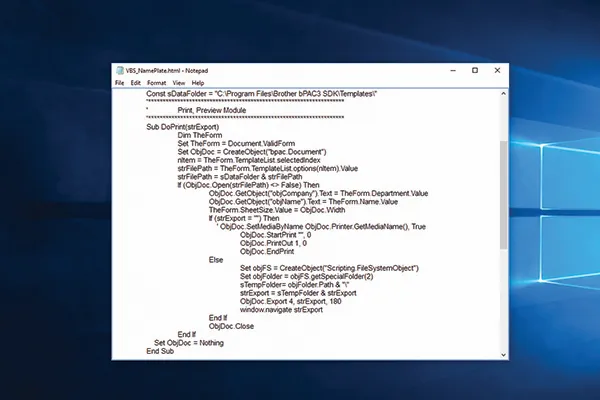

Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kit (b-PAC SDK) for Windows® or Mobile Software Development Kit (b-PAC SDK) for iOS® and Android™ OS and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit:
https://www.brother.co.jp/eng/dev/bpac/index.aspx
Specifications
Basic Specs
Media Type
DK rolls
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 234 mm × 145 mm
Weight
1.15 kg
Print Speed
Max. 5.8"/sec. (148 mm/sec.)
2 color (black and red on white DK roll) Print: Max 0.9"/sec (24 mm/sec)
Actual print speed varies depending on the conditions.
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity
USB 2.0 Full Speed
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Durable automatic cutter
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
6MB, 99 templates
Power
Power Source
240V AC 60Hz 1.7A
Auto Power-Off
Off/10/20/30/40/50/60 Minutes
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template
