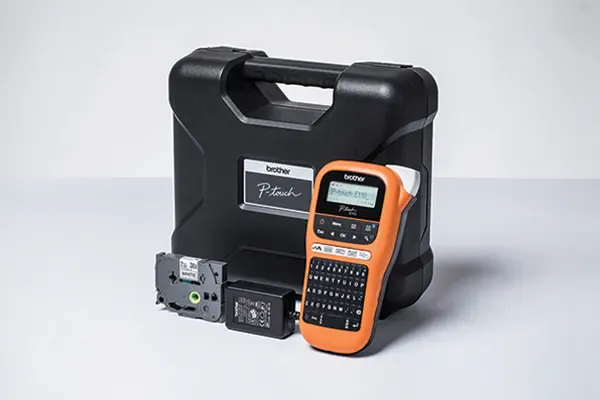

Label printer for electrical and datacom installations
MRP ₹9,590 (incl. of all taxes)
- Print up to 12mm TZe laminated tapes width

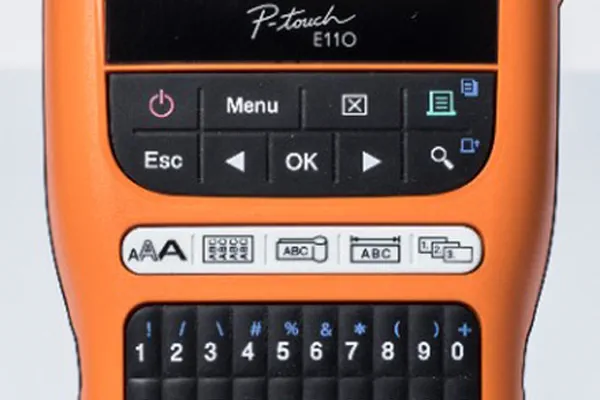

- QWERTY keyboard
- Manual cut function
- Dedicated function keys for electrical and datacom
- Comes with hard carrying case
- 1 frames, 10 font styles, 200 symbols, 9 memories
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 1 line
(uses 15 characters x 1 line)
Media Type
TZe tape
Available Tape Widths
6 mm, 9 mm, 12 mm
Product Dimensions (Width X Depth X Height)
110 mm × 58 mm × 204 mm
Weight
0.4 kg
Print Speed
20 mm/sec
Resolution
180 dpi
No. Of Printable Lines
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines
Number of Characters
377
Number of Symbols
200
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
1~50
Media
Maximum Tape Width
Up to 12 mm
Functions
Cutter
Manual
Multi Block Printing
No
Copy Printing
Yes ( 1 ~ 50 )
Mirror Printing
N/A
Preview
Yes
Memory
File Storage
9 files
Memory Buffer Size
up to 720 characters
Power
Power Source
6 AAA alkaline batteries (LR03), 6 AAA Ni-MH batteries (HR03), or AC adapter (AD-24ES)
Auto Power-Off
Yes ( Around 5 mins)
