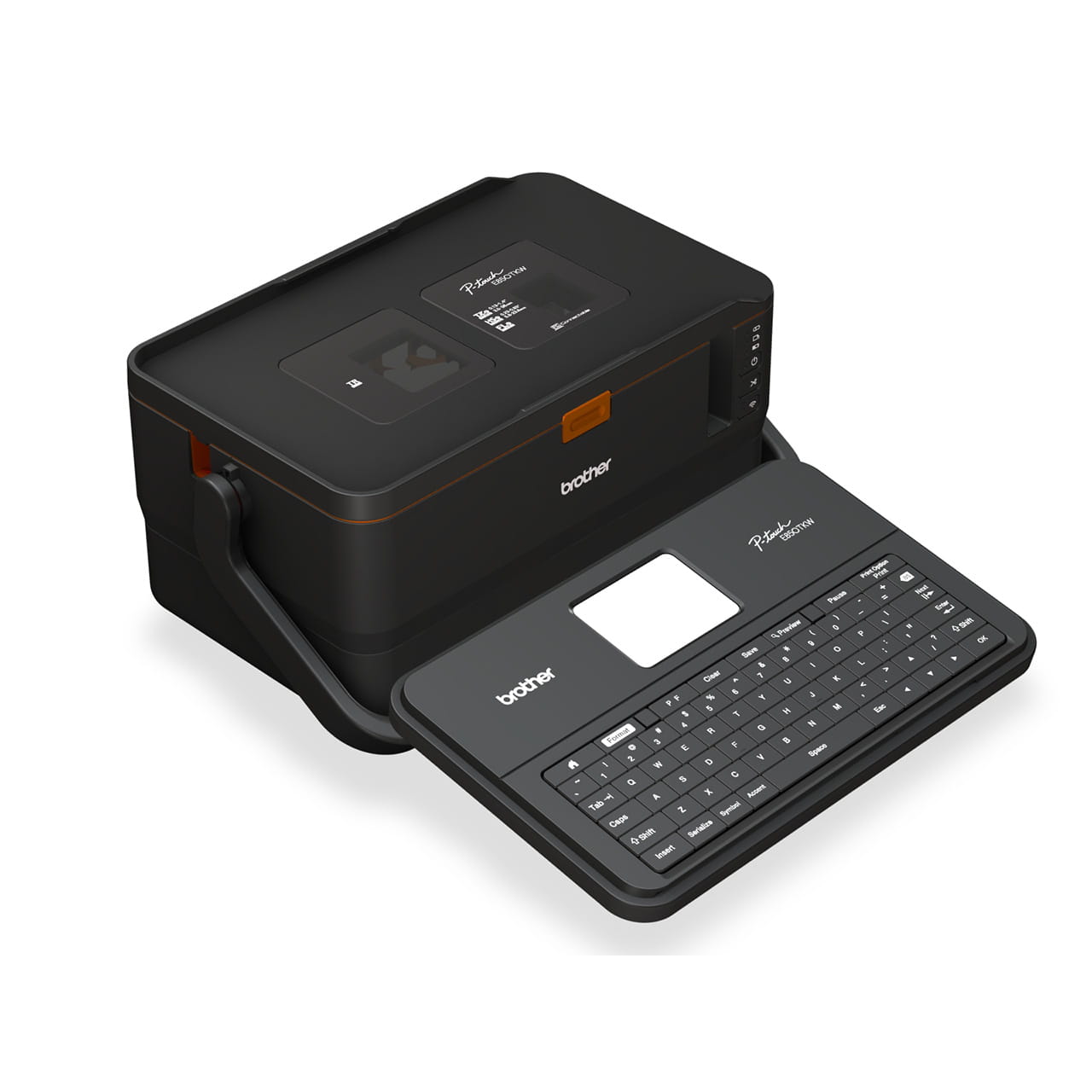

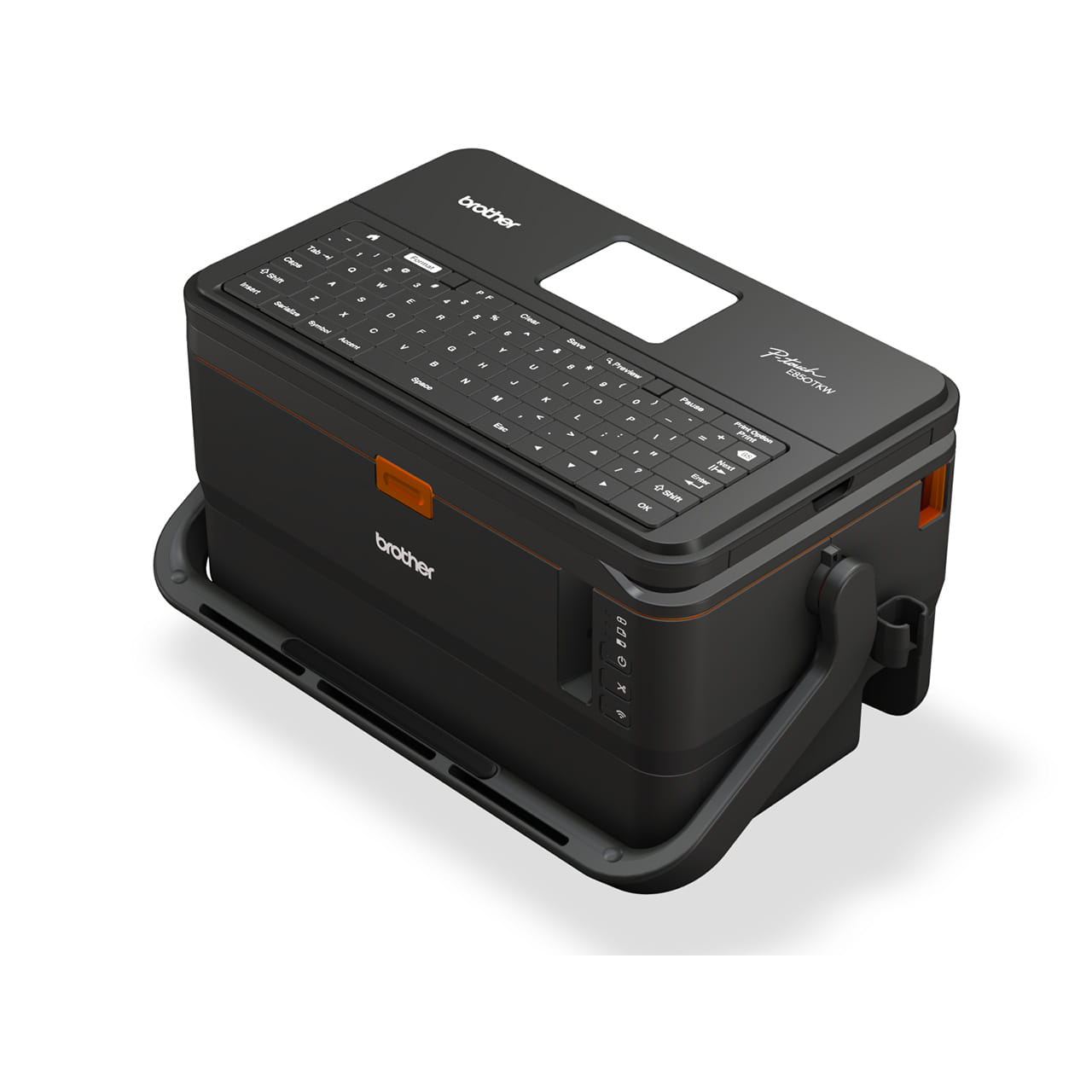

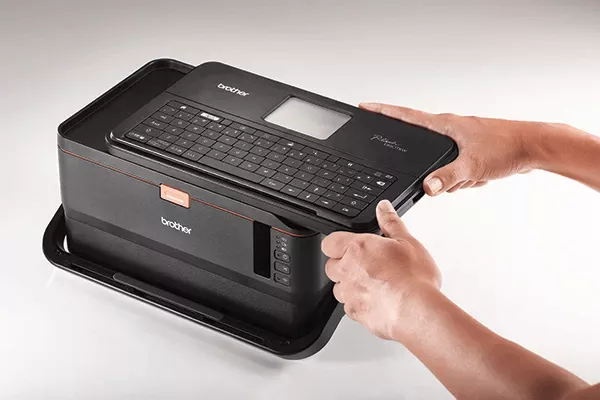

Industrial tube and label printer designed to meet the diverse needs of electricians
INR 69,790.00
- Barcode Printing Function
- Fast Print Speed

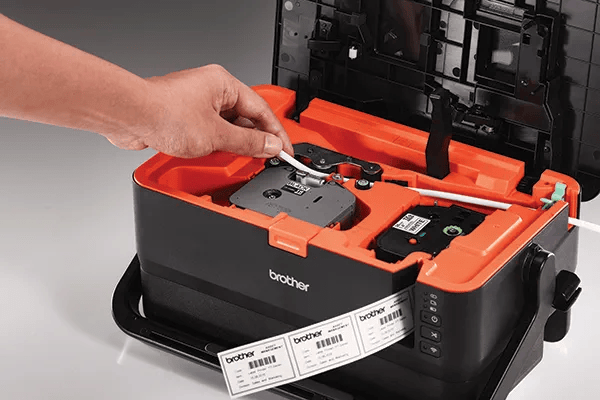

- Heat Shrink Tube Feature
- Wireless and USB connectivity
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Media Type

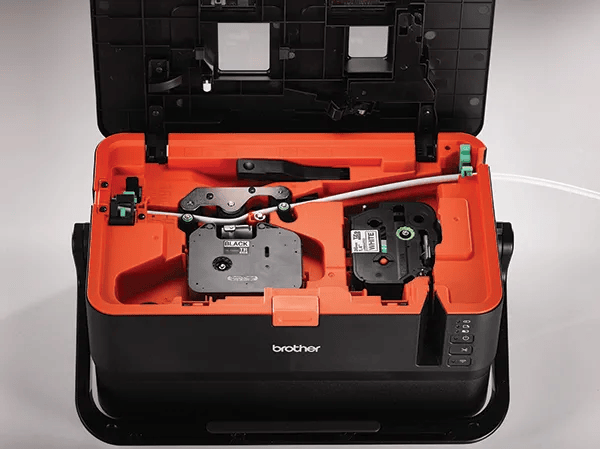

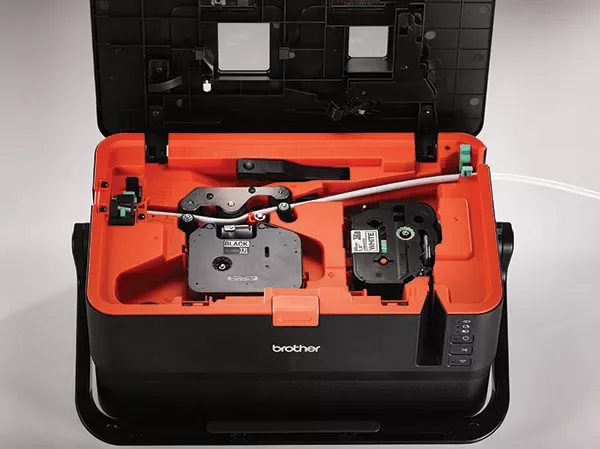

TZe Tape (Laminated), HSe (Heat-shrink Tube)
Available Tape Widths
3.5, 6, 9, 12, 18, 24, 36mm
Product Dimensions (Width X Depth X Height)
338 mm × 188 mm × 173 mm
Weight
4.6 kg
Print Speed
Tube printing: 40mm/sec
Label printing: 60mm/sec
Resolution
360 dpi
No. Of Printable Lines
Tube: 2 lines
Label: 17 lines
Number of Characters
826
Number of Symbols
465
Barcode

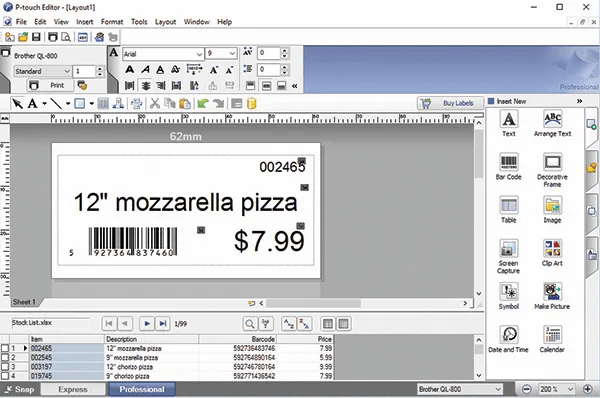

21 barcode protocols on P-touch Editor 5.1
Connectivity
Connectivity
USB version 2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11b (Ad-Hoc Mode), IEEE 802.11n (Wireless Direct), WPS 2.0
Media
Maximum Tape Width
Up to 36 mm
Functions
Cutter
Auto and half cutter
Mirror Printing
Yes
Memory
File Storage
99 files
Memory Buffer Size
up to 40,000 chrs
Power
Power Source
Adapter AC adapter (AD9100ESA): 24 V Battery (Optional)
Li-ion Battery (PA-BT-4000LI): 14.4 V
Auto Power-Off
Li-ion Battery (PA-BT-4000LI): 30 min
