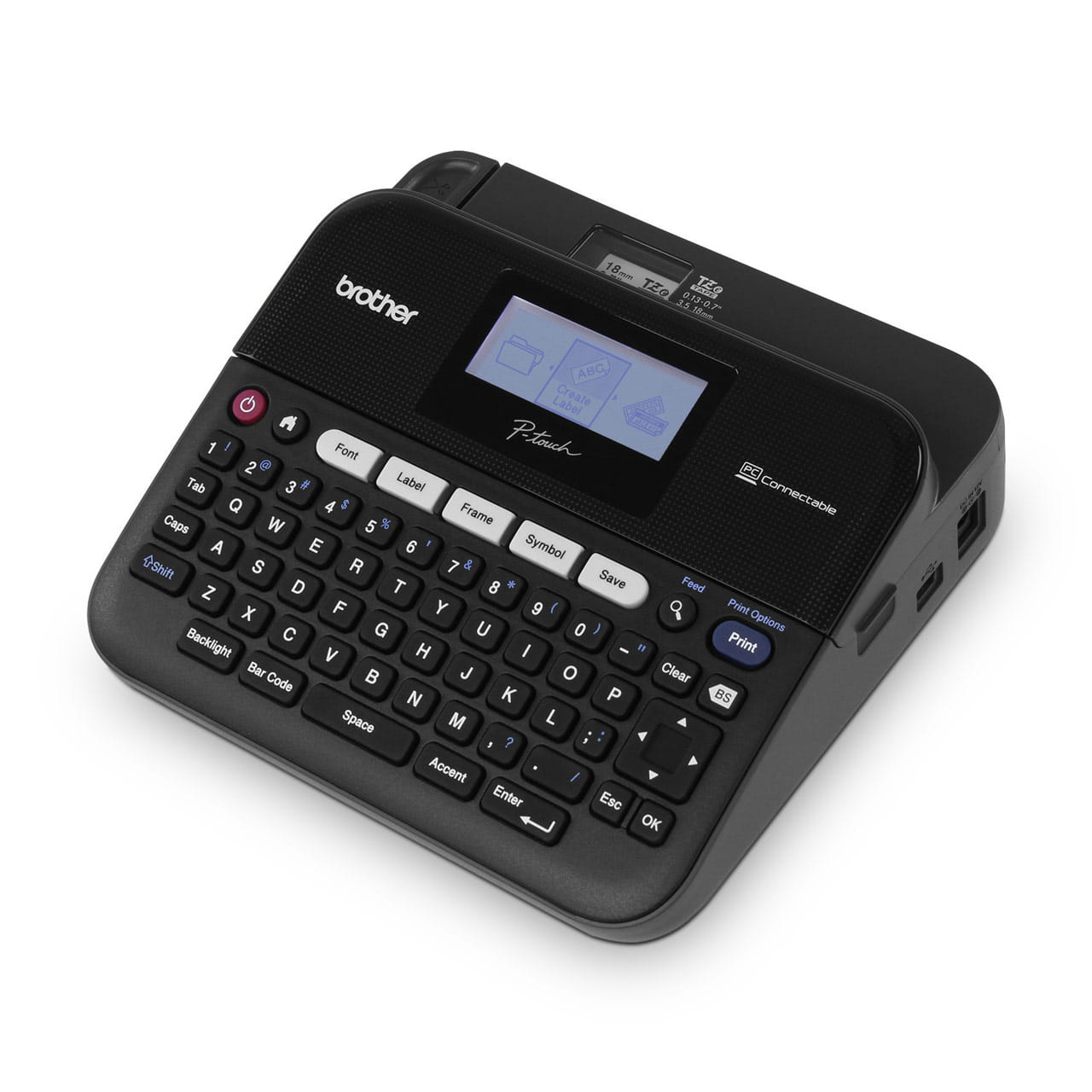

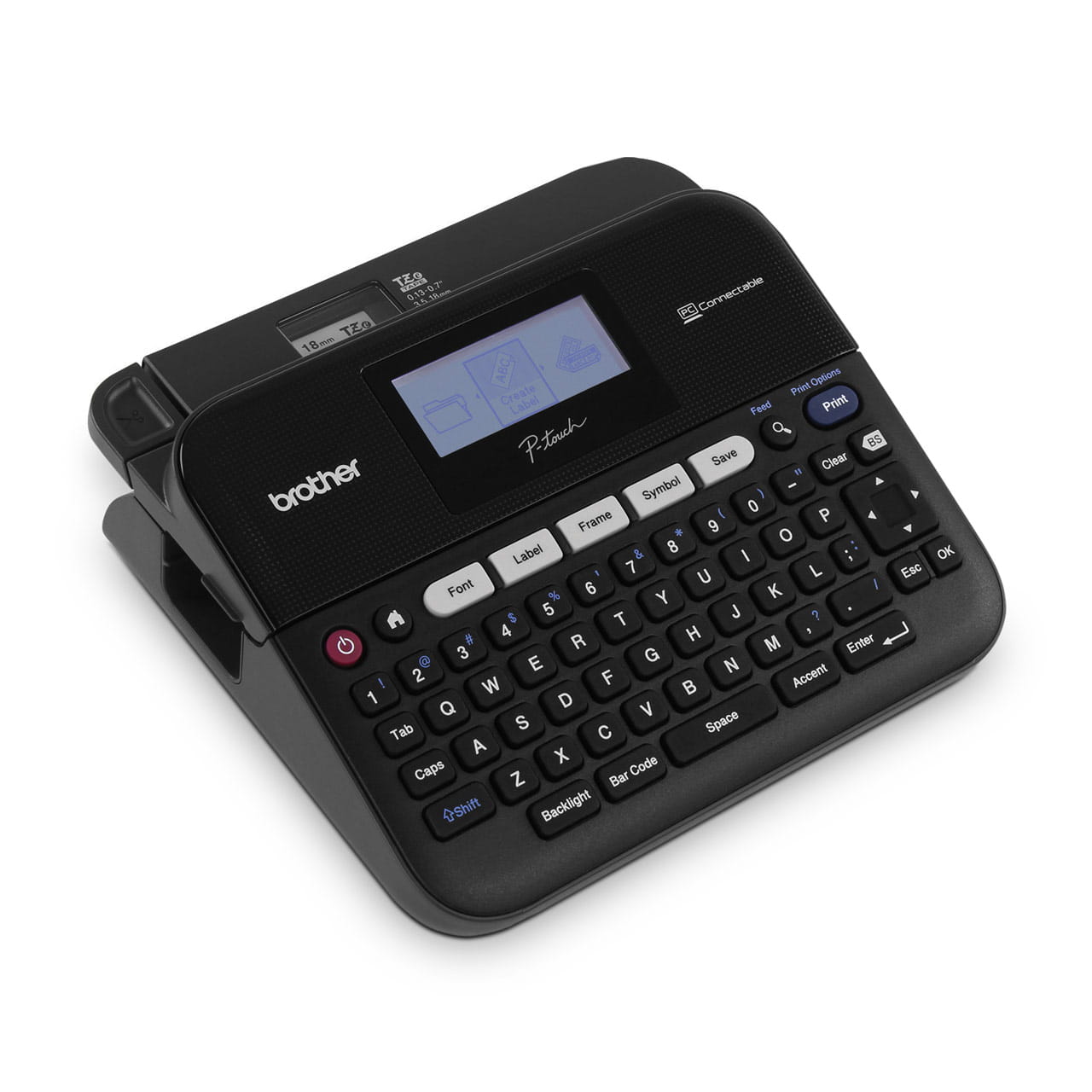

PC-compatible label printer for home and work
INR 16,490.00
- Print up to 18mm TZe laminated tapes width
- QWERTY Keyboard and USB connection
- Manual cut function
- Graphic LCD screen with backlight
- Editable label templates
- 99 frames, 11 font styles, 617 symbols, 50 memories
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
21 characters x 1 guidance and 3 lines text (320 dots x 120 dots)
Media Type
TZe tape
Available Tape Widths
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Product Dimensions (Width X Depth X Height)
189 mm × 70.5 mm × 177.5 mm
Weight
0.74 kg
Print Speed
20 mm/sec
Warranty
1 year On-Site warranty
Resolution
180 dpi
No. Of Printable Lines
18 mm tape: 1 - 5 lines;
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines;
3.5 mm tape: 1 line"
Number of Characters
826
Number of Symbols
617
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
Yes
Connectivity
Connectivity
USB
Media
Maximum Tape Width
Up to 18 mm
Functions
Cutter
Manual
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Maximum 50 files
Memory Buffer Size
Maximum 2,800 characters
Power
Power Source
6 AA alkaline batteries (LR6), 6 AA Ni-MH batteries (HR6), or AC adapter (AD-E001)
Auto Power-Off
Battery: 5 min
AC adapter: 8 hours
Show More
Show Less
